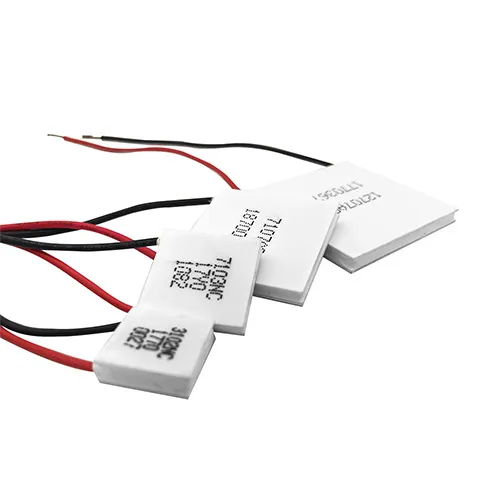

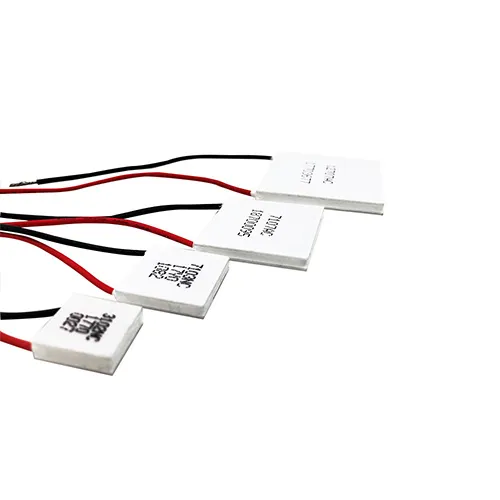

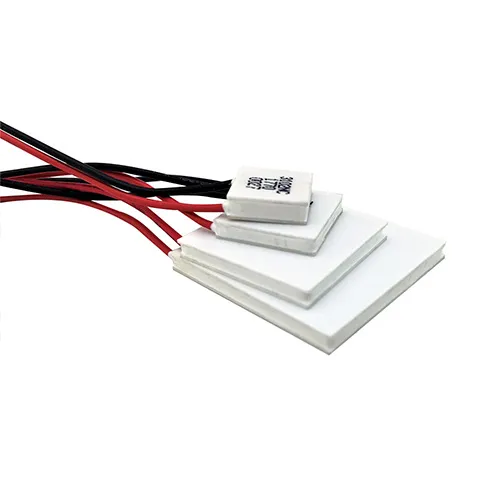

Thermoelectric Cooling Chip
- Small bulk, light weight
- Vibration-free, noise-free
- High reliability, high strength for rugged environments
- Precise temperature control
- RoHs and Reach compliant
- Bespoke designs available
Thermoelectric cooler (TEC) modules are efficient active cooling solutions that leverage the Peltier effect for precise temperature regulation. When an electrical current is applied, TEC modules absorb heat from one side and release it from the other, making them ideal for applications requiring precise temperature control.
TEC modules provide a reliable solution for temperature-sensitive electronics, medical devices, and laboratory equipment, ensuring effective heat management and stability. By maintaining exact temperatures, these modules achieve optimal cooling performance without the need for traditional cooling methods.
-
Principle of Thermoelectric Cooling Chip (TEC/TEM)

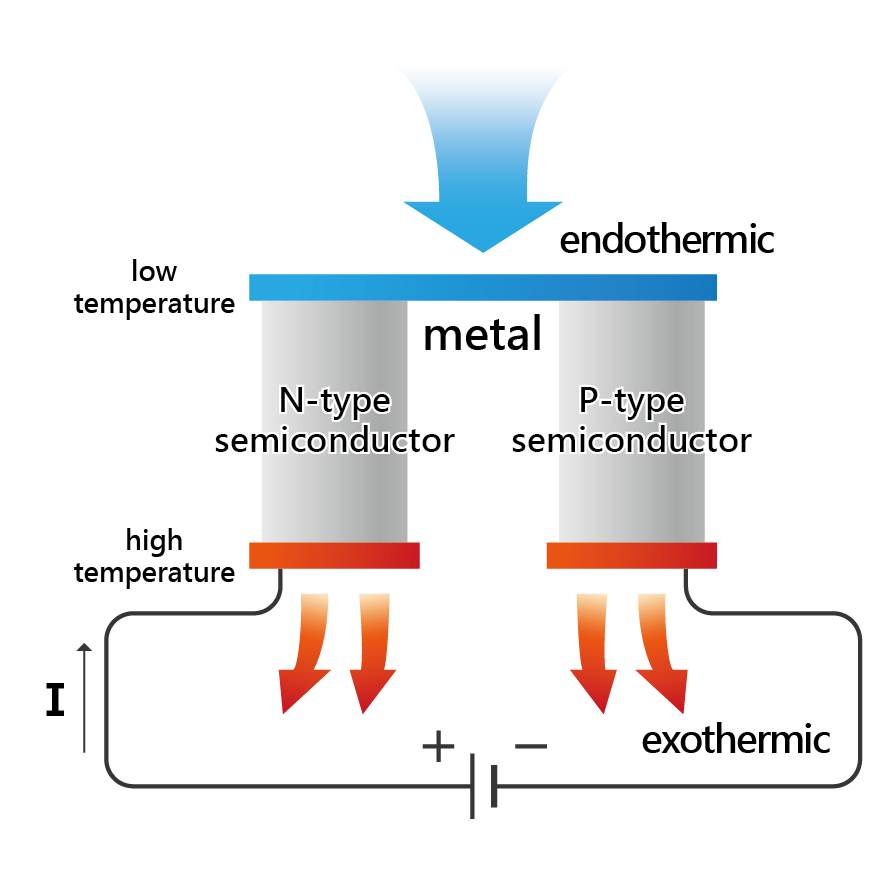

Thermoelectric cooling chips (TEC/TEM) operate on the Peltier effect, using P-type and N-type semiconductors to form a thermocouple. When connected to a DC power supply, the current flows from N to P, causing temperature to drop on one end, known as the cold side. Conversely, when the current flows from P to N, temperature rises on the hot end.
When the hot end temperature (Th) reaches 50℃, the temperature difference can exceed 74℃, facilitating continuous heat transfer from the cold end to the hot end. In general, higher power yields a faster rate of heat extraction.
-
Thanks to their precise temperature control capabilities, thermoelectric coolers (TEC) are extensively used in industrial and scientific applications that require thermal cycling. Common applications include medical equipment, freezers, water dispensers, military petroleum instruments, and scientific research instruments.
In the semiconductor industry, TEC modules play a crucial role in maintaining temperature stability during semiconductor IC manufacturing processes, ensuring optimal production conditions and enhanced product quality.
|
Size(mm) |
HeightH(mm) |
Imax(A) |
Vmax(V) |
Watt(W) |
@27℃ Qmax(W) | @50℃ Qmax(W) |
R(Ohm) |
|---|---|---|---|---|---|---|---|
|
15x15
|
3.1 | 6.0 | 3.8 | 22.8 | 13.0 | 14.3 | 0.45±10% |
| 3.4 | 8.5 | 2.1 | 17.9 | 10.3 | 11.3 | 0.20±10% | |
| 3.6 | 3.9 | 3.8 | 14.8 | 8.6 | 9.5 | 0.85±10% | |
| 3.8 | 3.0 | 3.8 | 11.4 | 7.3 | 8 | 1.00±10% | |
| 3.9 | 6.0 | 2.1 | 12.6 | 7.4 | 8.2 | 0.30±10% | |
| 4.7 | 2.0 | 3.8 | 7.6 | 4.4 | 5 | 1.65±10% | |
| 20x20 | 3.1 | 6.0 | 8.8 | 52.8 | 29.7 | 32.7 | 1.05±10% |
| 3.4 | 8.5 | 3.8 | 32.3 | 18.8 | 20.8 | 0.35±10% | |
| 3.6 | 3.9 | 8.8 | 34.3 | 18.7 | 20.9 | 1.95±10% | |
| 3.8 | 3.0 | 8.8 | 26.4 | 16.6 | 18 | 2.20±10% | |
| 3.9 | 6.0 | 3.8 | 22.8 | 13.6 | 14.9 | 0.55±10% | |
| 4.7 | 2.0 | 8.8 | 17.6 | 10.2 | 11.2 | 3.70±10% | |
| 30x30 | 3.15 | 6.0 | 15.7 | 94.2 | 53.1 | 59.1 | 1.90±10% |
| 3.45 | 8.5 | 8.8 | 74.8 | 43.1 | 48 | 0.85±10% | |
| 3.65 | 3.9 | 15.7 | 61.2 | 35.2 | 39 | 3.50±10% | |
| 3.85 | 3.0 | 15.7 | 47.1 | 29.8 | 32.5 | 4.00±10% | |
| 3.95 | 6.0 | 8.8 | 52.8 | 31.1 | 34.2 | 1.25±10% | |
| 3.95 | 6.0 | 11.8 | 70.8 | 48.0 | 52.8 | 1.65±10% | |
| 4.75 | 2.0 | 15.7 | 31.4 | 18.2 | 19.5 | 6.70±10% | |
|
40x40 |
3.45 | 8.5 | 15.7 | 133.5 | 77.1 | 85.0 | 1.50±10% |
| 3.95 | 6.0 | 15.7 | 94.2 | 55.6 | 61.0 | 2.20±10% | |
