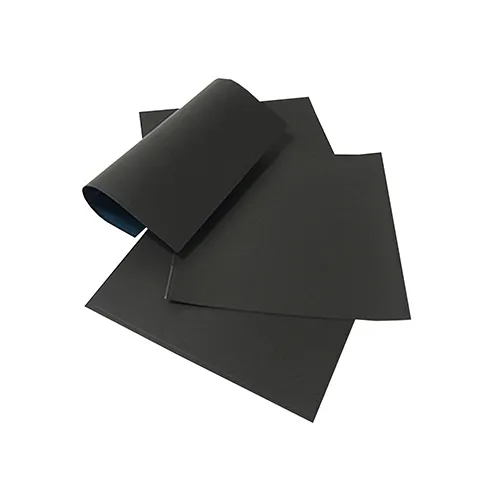

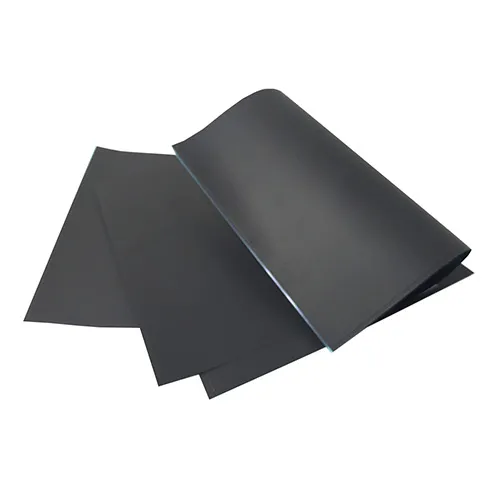

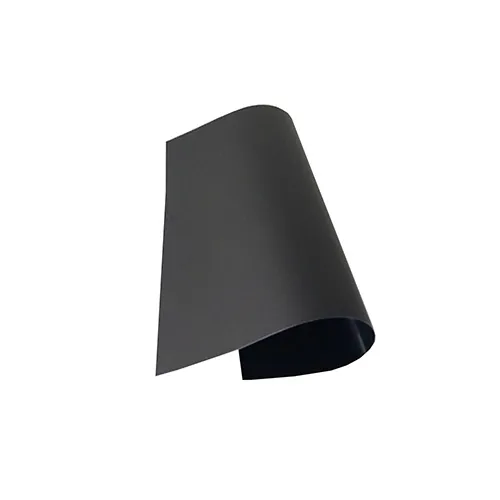

TG-FAM7 Flexible Absorbing Material
- Ultra thin and extremely flexible, can be freely arrangrd in space.
- Non-conductive adhessive backing(UL Recognized) available.
- Effective in preventing resonance and suppressing coupling.
- High Surface resistance (106-109ohms)
- Easy and fast to process
- Can be cut any shape easily
Notebooks, PCs, workstations, Mobile communications equipment, Base stations for mobile phones and Peripheral devices for computers, Wireless equipment, Mobile phones, PHS, High speed clocks, RFID (Radio Frequency Identification) systems, NFC (Near field communication) , Wireless charger
Properties
Unit
TG-FAM7 Flexible Absorbing Material
Testing methods
Frequency
GHz
0.001~3.0
–
Thickness
mm
0.08/0.12/0.22
–
Maximum Size
mm
130×130
–
Operating Temperature
℃
-30~+120
–
Density
g/cm³
3.8
–
Material
Sintering Iron-Core
–
Magnetic Inductivity (μ'@1MHz)
140
–
Halogen
Halogen Free
–
Surface Resistance
Ohm
10⁹
–
Structure
PET Tape+
FAM+
2-sided adhesive tape+
Release paper
Optional Dual-Side Adhesive Tapes
–
