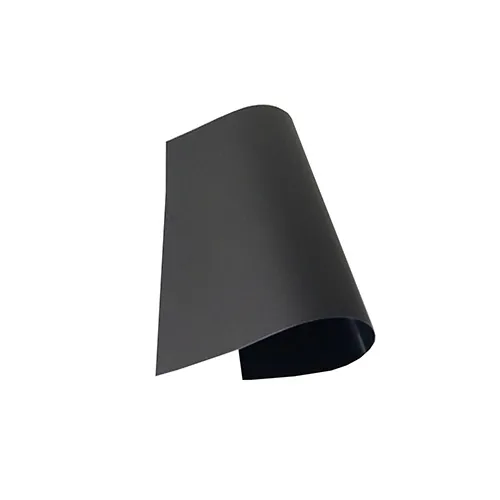

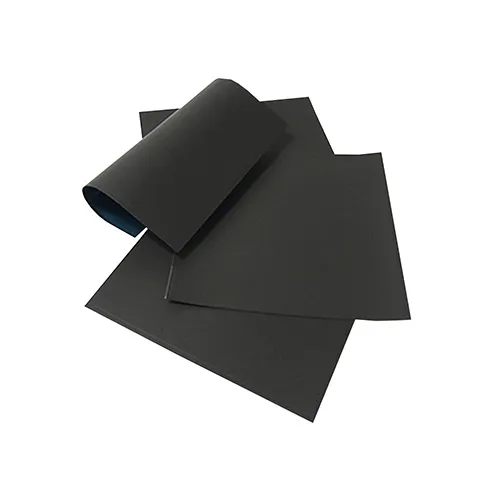

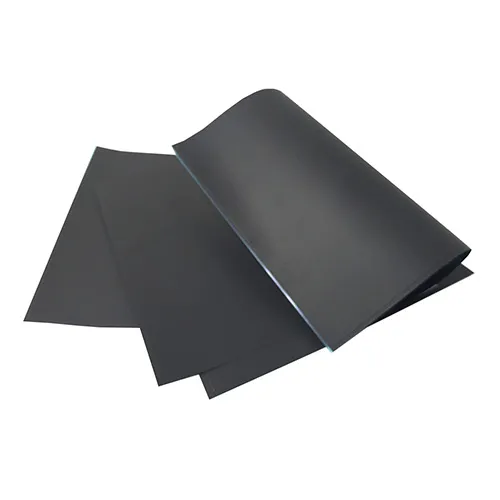

TG-FAM6 Flexible Absorbing Material
- Ultra thin and extremely flexible, can be freely arrangrd in space.
- Non-conductive adhessive backing(UL Recognized) available
- Effective in preventing resonance and suppressing coupling
- High Surface resistance (106-109ohms)
- Easy and fast to process
- Can be cut any shape easily
Properties
Unit
TG-FAM6 Flexible Absorbing Material
Testing methods
Frequency
GHz
0.001~9.0
–
Thickness
mm
0.05/0.1/0.2/0.3/0.5
–
Maximum Size
mm
210×297 (A4 Size)
–
Operating Temperature
℃
40~+155
–
Density
g/cm³
4.4
–
Material
170
–
Magnetic Inductivity (μ'@1MHz)
170
–
Halogen
Halogen Free
–
Surface Resistance
Ohm
10⁵
–
Structure
FAM
2-sided adhesive tape
Release paper
Adhesive Tape Options (No/Sigle-Side/Dual-Side)
–
