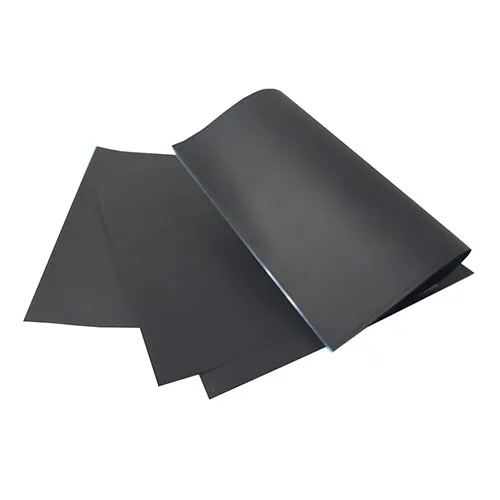

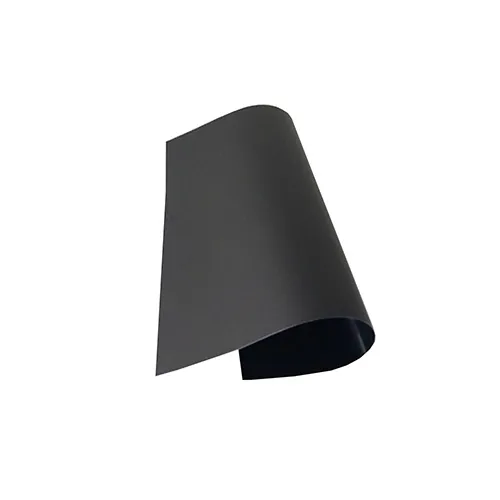

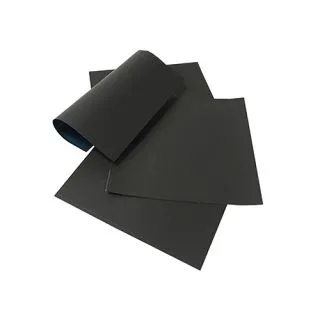

TG-FAM3 Flexible Absorbing Material
- Ultra thin and extremely flexible, can be freely arrangrd in space.
- Non-conductive adhessive backing(UL Recognized) available.
- Effective in preventing resonance and suppressing coupling.
- High Surface resistance (106-109ohms)
- Easy and fast to process
- Can be cut any shape easily
Properties
Unit
TG-FAM3 Flexible Absorbing Material
Testing methods
Frequency
GHz
0.001~18.0
–
Thickness
mm
0.25/0.50/0.75
–
Maximum Size
mm
400×400
–
Operating Temperature
℃
-40~+85
–
Density
g/cm³
4.8
–
Material
Magnetic Particles + Rubber
–
Magnetic Inductivity (μ'@1MHz)
50
–
Halogen
Halogen Contained
–
Surface Resistance
Ohm
10⁶
–
Structure
FAM
2-sided adhesive tape
Release paper
Adhesive Tape Options (No/Sigle-Side/Dual-Side)
–
