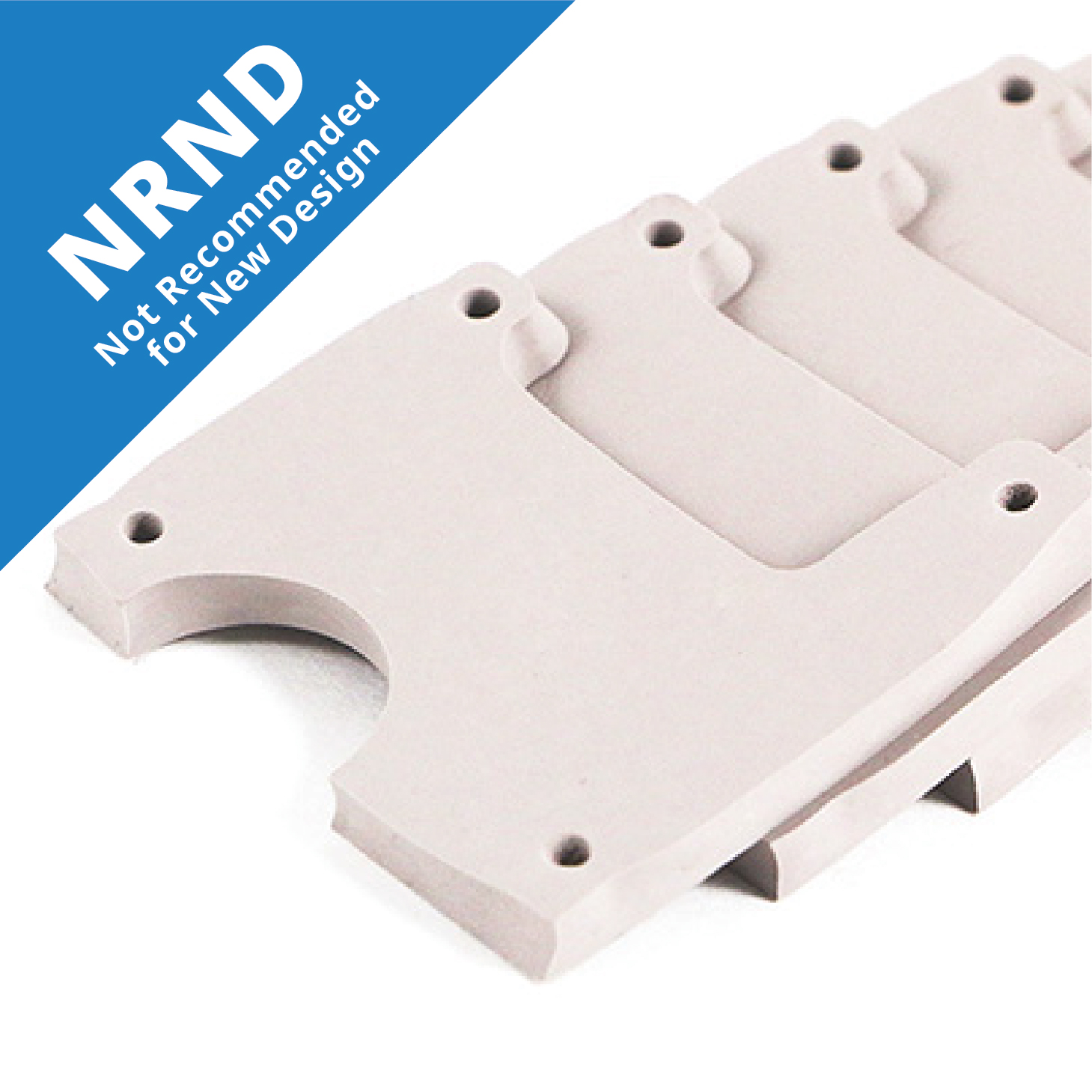

TG-AL375 / L37-5 Thermal Pad

  • Good resilience, resistant to stretching and deformation
  • Insulation
  • Good thermal conductivity
  • Thickness can reach up to 20.0mm

TG-AL375 / L37-5 thermally conductive silicone sheet features self-adhesiveness, excellent resilience, ease of installation and reworking, and resistance to stretching and deformation, making it a material with shock-absorbing properties. Additionally, its thickness ranges from 0.3 to 20.0 millimeters, meeting various design requirements of customers. This product is insulating and possesses a superior thermal conductivity coefficient of 1.7W/m•K.

Share:

This  is the old series thermal pads, please contact our product consultant if you got any inquiry.

The new  TG-A series thermal pad has better performance on the thermal conductivity,  compressibility, with the ultra-soft softness, low thermal resistance and naturally tacky’s characteristics. It is often used as an interface material for IC and electronic heat dissipation, and is equipped with a heat pipe, vapor chamber and cooling modules.



Recommended ultra soft thermal pad Series

TG-A20KX High Performance Thermal Pad
TG-A20KX High Performance Thermal Pad
Thermal Conductivity:2.0 W/m•K ±10%
Hardness:Shore OO 55 ±8
Dielectric Breakdown Voltage:≥12 KV/mm



Properties
Unit
TG-AL375 / L37-5 Thermal Pad
Testing methods
Thermal Conductivity
W/m•K
1.7±10%
ASTM D5470 Modified
Thickness
mm
0.3~20.0
ASTM D374
Color
Gray
Colorimeter CIE 1976
Flame Rating
V-0
UL 94
Dielectric Breakdown Voltage
KV/mm
≥10.2
ASTM D149
Reinforcement Carrier
-
Weight Loss
%
<1
ASTM E595 Modified
Density
g/cm³
2.38±5%
ASTM D792
Operating Temperature
°C
-40~+200
Volume Resistivity
Ohm-m
>10¹²
ASTM D257
Elongation
%
300
ASTM D412
Standard Format
Sheet
Hardness(Silicone Side)
Shore A
20±5
ASTM D2240
