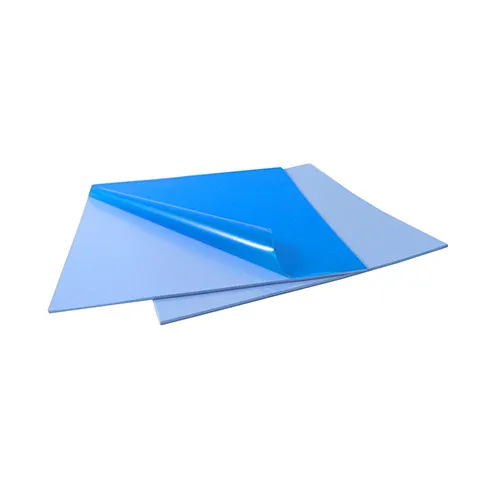

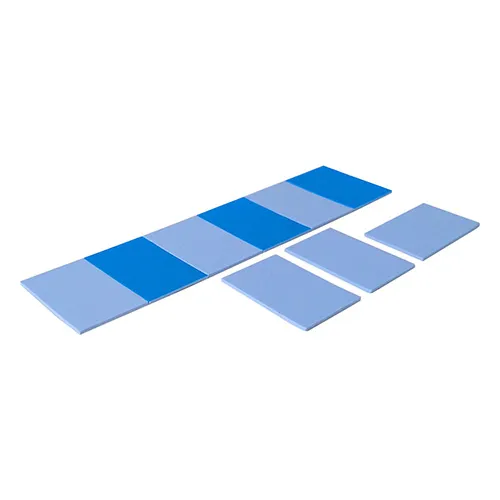

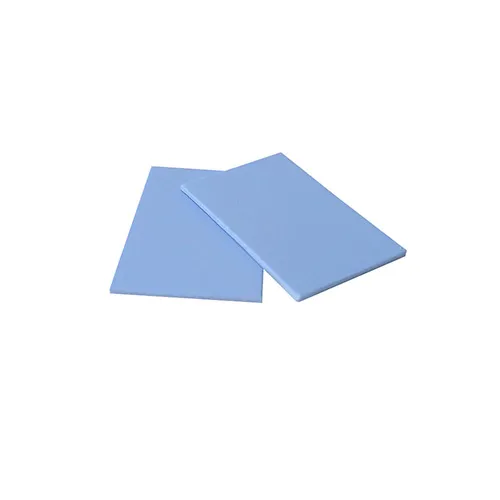

TG-A38KX High Performance Thermal Pad
- Great thermal conductivity
- Difficult to be deformed
- Easy to assemble
By using a special process, we use the silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
TG-A38KX has great thermal conductivity, it’s difficult to be deformed and easy to assemble. With Protection, impact absorption, flame resistance, and good fit.
【Suitable for low-power products 】
This high-performance thermal pad has a very good gap-filling ability, good temperature resistance, and it can work firmly at -40°C~200°C. The material has high electrical insulation and self-adhesiveness, and no additional adhesive is required to delay heat conduction. Widely used in industry, electronics, automotive components, Power supply and other industries, high thermal conductivity, and low cost.
Application：
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.

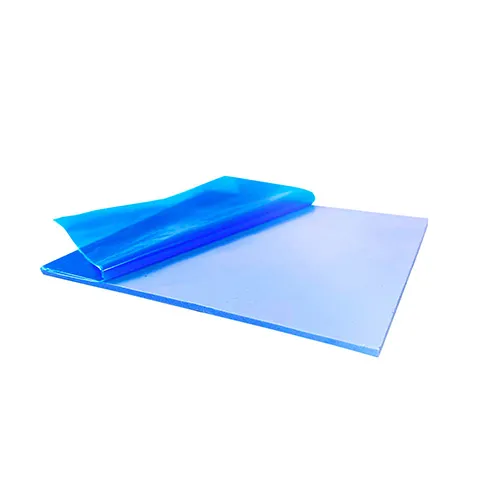

Tearing off the release paper.
Attach the thermal pad to the heat source.
Remove the protective film.
Apply components onto the exposed part.
Thermal Conductivity
Thermal conductivity refers to the ability of a given material to conduct/transfer heat.
Dielectric Breakdown Voltage
Dielectric breakdown is the failure of an insulating material to prevent the flow of current under an applied electrical stress.
Hardness
Higher numbers on the scale indicate a greater resistance to indentation and thus harder materials.
Properties
Unit
TG-A38KX High Performance Thermal Pad
Testing methods
Thermal Conductivity
W/m•K
3.8±10%
ASTM D5470 Modified
Thickness
mm
0.3~10.0
ASTM D374
Color
Blue
Colorimeter CIE 1976
Flame Rating
V-0
UL 94
Dielectric Breakdown Voltage
KV/mm
≥10
ASTM D149
Reinforcement Carrier
–
–
Weight Loss
%
<1
ASTM E595 Modified
Density
g/cm³
3.1±5%
ASTM D792
Operating Temperature
°C
-40~+200
–
Volume Resistivity
Ohm-m
3x10¹²
ASTM D257
Elongation
%
110
ASTM D412
Standard Format
Sheet
–
Hardness(Silicone Side)
Shore OO
60｜±8
ASTM D2240
