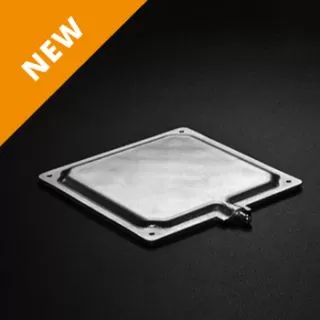

OB Vapor Chamber
- Two-dimensional heat transfer
- Passive component
- High stability
- 10 times more efficient than a heat pipe
Its function and working principle are the same as those of a heat pipe, which operates in a cyclic manner by evaporating and condensing an active fluid enclosed in a plate-like chamber. It is a high-performance heat conduction device that can quickly transfer the local heat source to a large area of the plate.
A vapor chamber provides two-dimensional thermal conduction, making it a more efficient solution for high-level thermal challenges. Inside the vapor chamber is a vacuum chamber with a capillary structure. When the working fluid absorbs heat, it rapidly vaporizes and flows to the cooling zone. After exchanging heat with the external environment, the vapor condenses into liquid and flows back to the heat source area, completing the entire circulation process.
Best for high-performance applications：
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
-

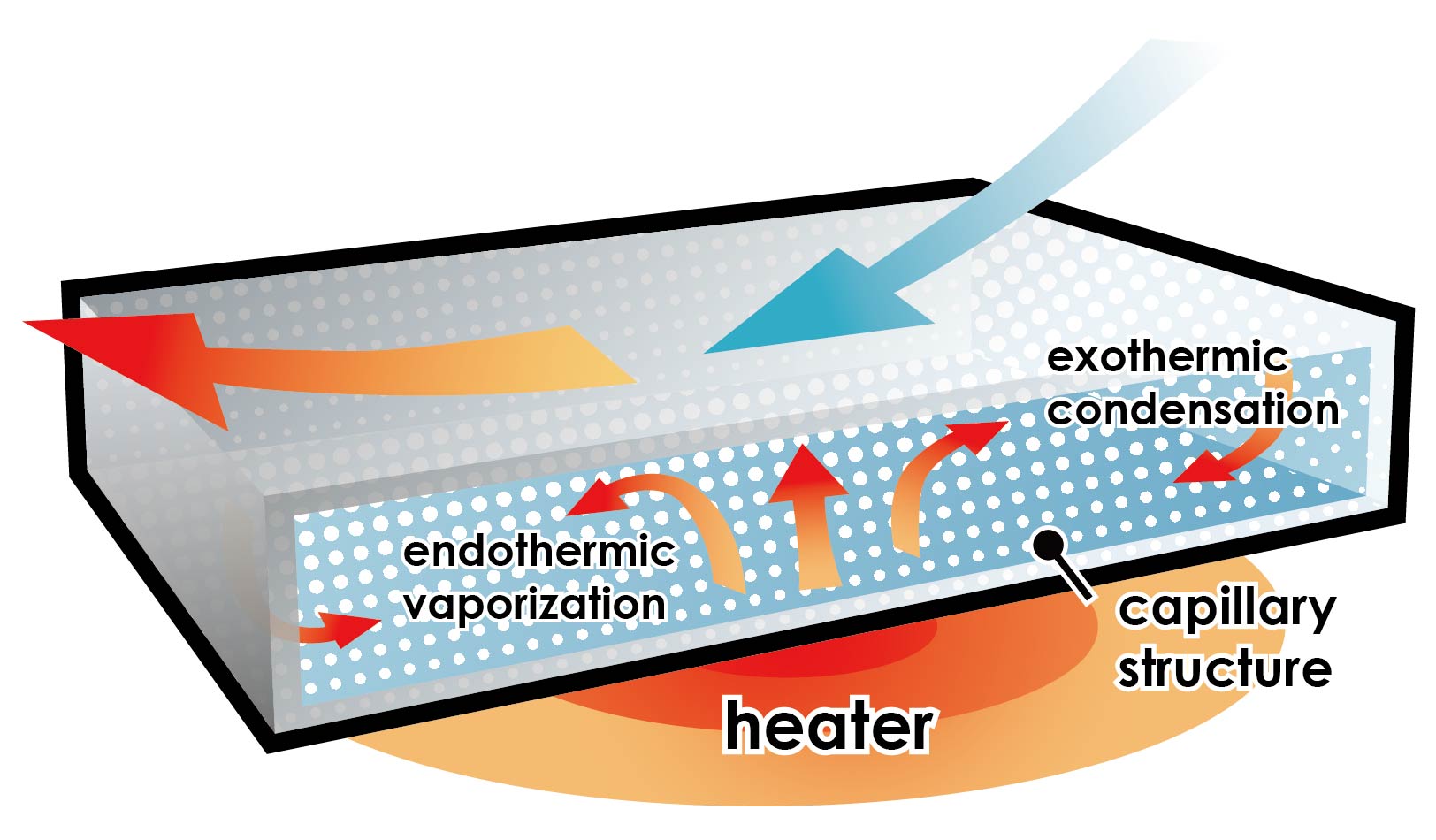

Working theorem
The working principle of a vapor chamber is the same as that of a heat pipe. The main difference lies in the method of thermal conduction — a vapor chamber conducts heat in two dimensions. Therefore, it offers a more efficient solution for high-level thermal challenges.Inside the vapor chamber is a vacuum cavity with a capillary structure. When the working fluid absorbs heat, it rapidly vaporizes and moves to the cooling zone. After exchanging heat with the external environment, it condenses back into liquid and flows back to the heat source. This continuous cycle enables efficient heat transfer. -
Recommended specifications
Different industries will require different specifications, please contact us directly for the most suitable specifications.
Inquiry
Provide your inquiry details through T-global website; our product consultants you ASAP.
Project discussion
Mechanical design of products, related demands confirmation, model description, location/sizes/wattage of the heat source.
Offer thermal solution plans
Product consultants offer total thermal solutions.
Progress tracking
Convenient progress tracking to ensure customer's goals achieved on time.
