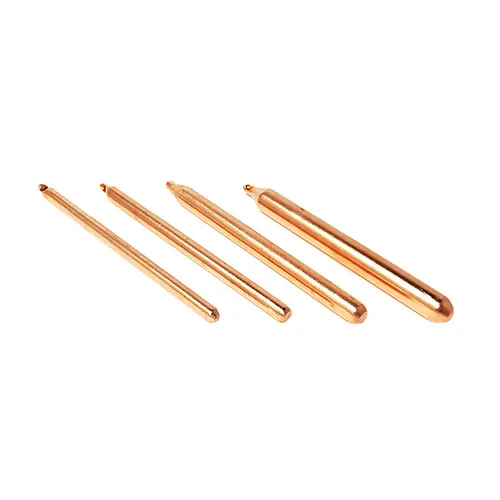

Heat Pipe
- Heat flow density change function
- Passive component
-
Fast temperature uniformity
Heat pipe is a component that can quickly solve the single point of heating, using the two-phase change process of material vapor, liquid and convection principle design.
Heat dissipation mechanism
The heat pipe process first removes the internal air and then injects the working fluid with a seal. The vaporization temperature of the working fluid drops significantly under low pressure. The evaporation zone absorbs heat and vaporizes rapidly. The vapor moves to the condensation zone, exchanges heat with the external heat source, condenses into a liquid state, and then flows back to the evaporation zone by gravity or capillary force and pressure difference of the tube wall, and the cycle continues again and again. By the principle of two-phase flow, the heat transfer coefficient is about 50~100 times that of pure aluminum.
|
Recommended specifications |
|---|

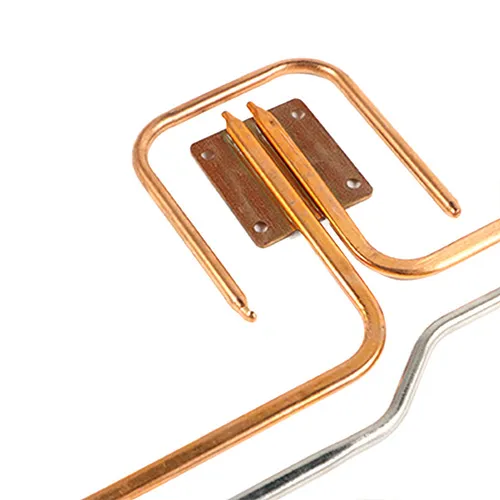

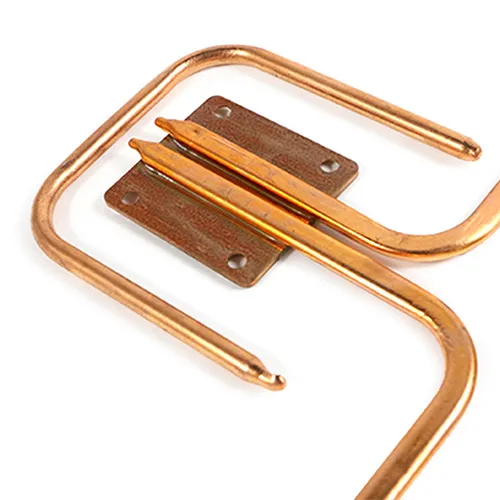

| ●Length: 100~350mm ●Flattening thickness: half of the diameter e.x. Ø6 flattened to be 3mm or more. ●Bending R-angle: greater than 3 times the diameter of the guide tube. e.x. Ø6 bending radius greater than 18mm ●Bending angle: more than 120 degrees. |
| Diameter(mm) | Thickness(mm) | Width(mm) |
|---|---|---|
| Ø4 | 2 | 5.65 |
| 2.5 | 5.55 | |
| 3 | 5.45 | |
| 2 | 6.91 | |
| 2.5 | 6.59 | |
| Ø5 | 3 | 6.32 |
| 3.5 | 6.01 | |
| 4 | 5.68 | |
| 2 | 8.50 | |
| 2.5 | 8.18 | |
| Ø6 | 3 | 7.95 |
| 3.5 | 7.65 | |
| 4 | 7.39 | |
| 2 | 11.65 | |
| 2.5 | 11.39 | |
| 3 | 11.15 | |
| 3.5 | 10.83 | |
| Ø8 | 4 | 10.60 |
| 4.5 | 10.27 | |
| 5 | 10.01 | |
| 6 | 9.36 |
