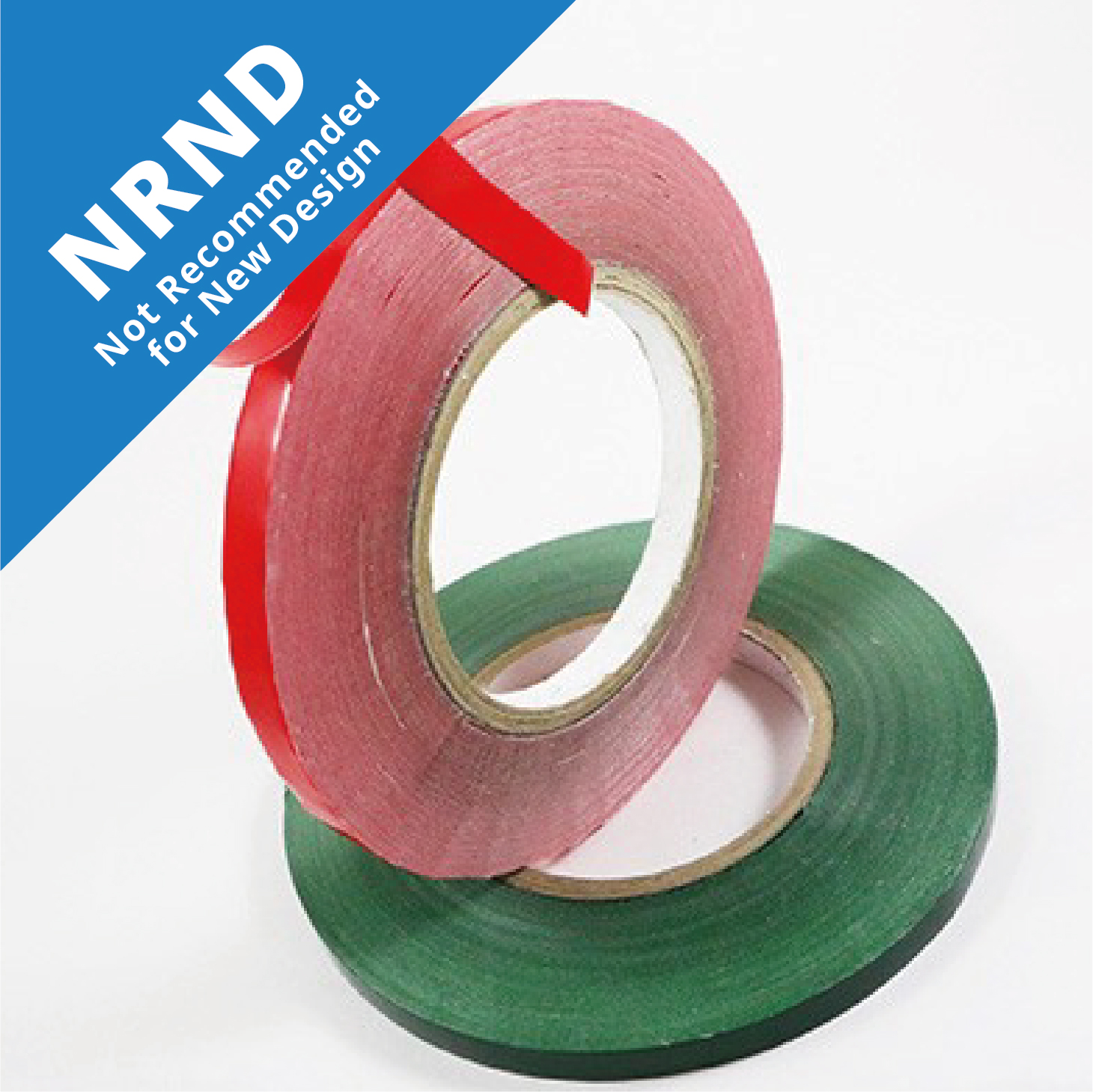

Li98 Thermal Tape
-
Good adhesion (Acrylic PSA)
-
Great reliability
-
Cost effective with great performance
-
Easy to assemble
-
Customization services for different industries
It has high thermal conductivity, viscosity and low thermal resistance. It is a good replacement for thermal grease as the high viscosity can fix the electronic parts, which is also a great material for fill up the uneven surface between the heat source and heat sink , to transfer the heat to the heat sink finally achieve heat dissipation and lower the product’s temperature.
Li98 is a thermal tape that has 1W/m•K thermal conductivity also It not only has a good grip but also has very high reliability and high adhesion. There is no need to worry about falling off easily. It is also very easy in processing and can be customized according to customer requirements. Customized, with extremely high C/P value.
Li98 thermal tape is widely used in the optoelectronic and panel industries, such as backlight modules, to fill the uneven gap between the heat source and the heat sink, and to remove the heat generated by electronic products to achieve the effect of cooling and heat dissipation.
Application：
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
Properties
Unit
Li98 Thermal Tape
Testing methods
Thermal Conductivity
W/m•K
1±10%
ASTM D5470 Modified
Thickness
mm
0.15/0.25
ASTM D374
Color
白
–
Dielectric Breakdown Voltage (AC)
KV
≥2/≥3.1
ASTM D149
Dielectric Breakdown Voltage (DC)
KV
≥3.1/≥4.1
ASTM D149
Operating Temperature
°C
-30~+120
–
Density
g/cm³
1.85±5%
ASTM D792
Reinforcement Carrier
玻纖
–
Tensile Strength
psi
200/400
ASTM D412
Short Time Use Temperature (30sec)
°C
200
–
Glass Transition Temperature
°C
-30
–
Initial Tack
cm
10/8
PSTC-6
Lap Shear Strength
N/cm²
61
ASTM D1002
Die Shear Strength @25°C
N/cm²
120
–
Die Shear Strength @80°C
N/cm²
69
–
Holding Power1000g @25°Cusing 1 in²
min
>10000
PSTC-7
Holding Power1000g @80°Cusing 1 in²
min
>10000
PSTC-7
Peeling Strength 90° (Aluminum)
N/in
>10/>12
ASTM D3330
Peeling Strength 180° (Aluminum)
N/25mm
-
PSTC-101
Thermal Impedance @10psi
°C*in²/W
0.93/1.26
ASTM D5470 Modified
Thermal Impedance @30psi
°C*in²/W
0.76/1.05
ASTM D5470 Modified
Thermal Impedance @50psi
°C*in²/W
0.61/1.06
ASTM D5470 Modified
