What is a Thermal Pad and Why Is It Essential for Heat Management?

What Is a Thermal Pad?

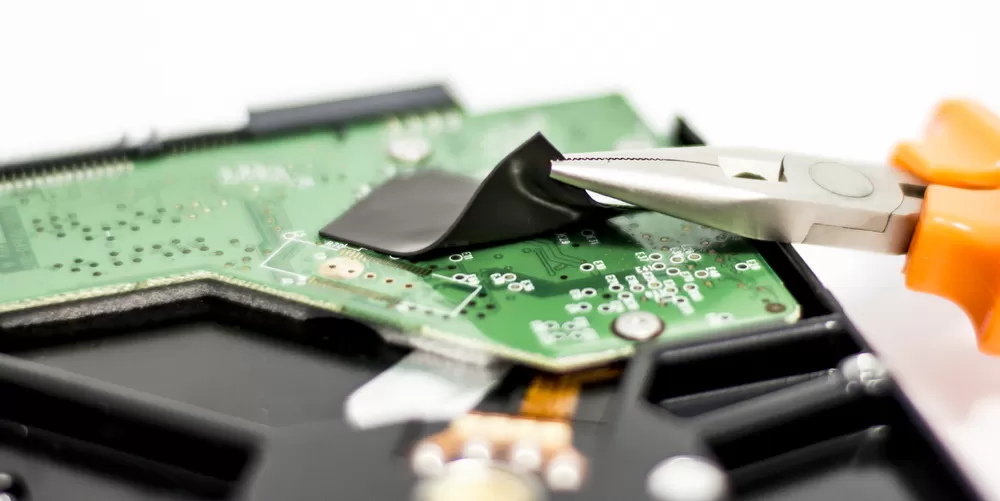

Thermal pads, also known as thermally conductive or interface pads, are pre-formed solid materials that allow heat transmission between components with surface imperfections. It closes small air gaps that trap heat between a CPU and a heatsink or other thermal dissipation medium.

Silicone or paraffin wax with ceramic or metallic particles is among thermal pad materials with thermal conductivity of 1 to 20 W/m·K. Due to its flowability, thermal paste provides greater thermal conductivity for sensitive CPU applications. Yet, thermal pads provide uniformity and insulation for RAM, VGA cards, and MOSFETs. Unlike heat sinks and cooling fans, thermal pads provide direct contact without short circuits or material leakage while focusing on micro-level interface efficiency. Their non-curing nature and resilience at severe temperatures (-50°C to +200°C) can make them appropriate for long-term usage in delicate electronics.

How Does a Thermal Pad Work?

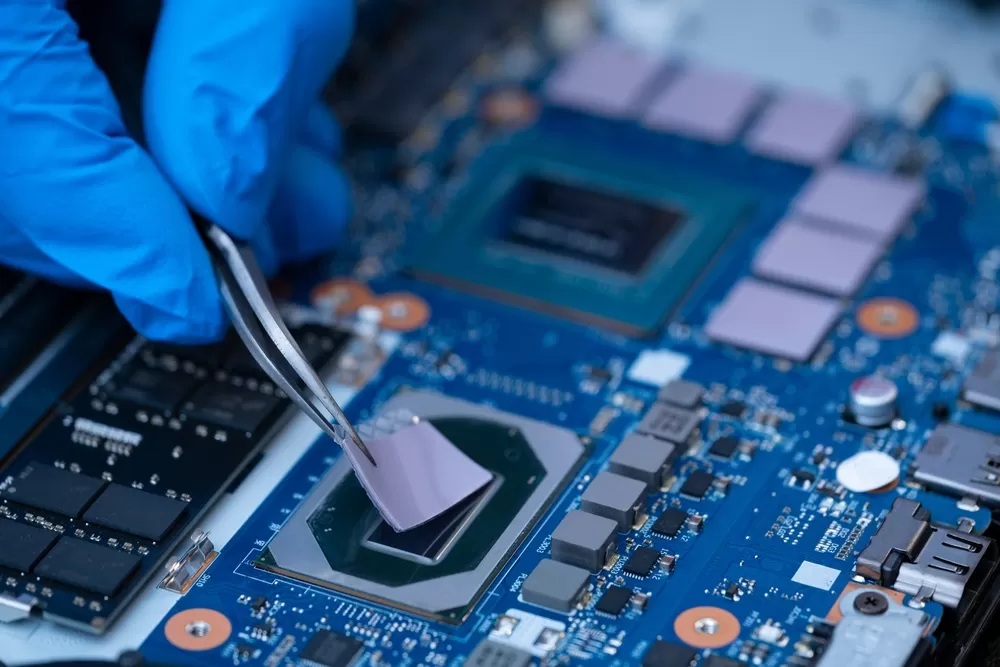

What is a thermal pad? The interface material fills small air spaces between uneven processors and heat sinks for heat transmission. These microscopic air pockets act as thermal insulators, significantly reducing heat conduction efficiency. Some gaps are only a few micrometers wide. Thermal pads of compressible silicone foam or graphite sheets adhere to such imperfections under low pressure. Depending on the thermal pad material, they generate a direct heat route with a range of thermal conductivities.

Thermal pads are pre-cut, easier to install, and last for years, even under heat cycling in PCBs or EV batteries. It is unlike thermal paste, which may have better initial conductivity but degrades and is hard to apply consistently. Its long-term stability reduces the need for reapplication, which is crucial for high-reliability LED displays and sensors. For example, a GPU with a 1 mm silicone thermal pad may decrease thermal resistance to 0.3°C/W, assuring maintenance-free performance.

Common Thermal Pad Materials

Silicone-Based Pads

Due to their flexibility and compliance, silicone-based pads are the most adaptable thermal pad material. They conform to uneven surfaces for lower air gaps that cut thermal conductivity. Thermal conductivities from 2 to 10 W/m·K suit mid-power CPUs and GPUs. Still, their thermal stability might cap around 200°C, limiting use in high-temperature environments. When considering what is a thermal pad, silicone-based variants balance ease of use with performance.

Graphite Sheets

Graphite Sheets are ideal for applications requiring extreme thermal conductivity. Values may exceed 1000 W/m·K in-plane. Unlike silicone, they can operate at temperatures close to 300°C for power electronics and LED modules. Apart from that, their anisotropic nature gives heat dissipation in a planar direction for efficiency in compact systems. Graphite delivers high-end performance for engineers evaluating thermal pad material options but at a higher expense.

Phase-Change Materials (PCM)

Phase-change thermal pads are employed in transient thermal management. They can transition from solid to semi-liquid at 15-90°C to decrease thermal resistance. It gives intimate contact between heat sources and heat sinks. With conductivities between 0.2 and 0.5 W/m·K, PCMs suit CPUs, power modules, and telecom systems. Importantly, when determining what is a thermal pad for active thermal demands, PCMs shine because of their self-adjusting properties.

Ceramic-Filled Pads

Ceramic-filled pads combine silicone flexibility with conductivity from aluminum oxide or boron nitride. Their thermal conductivity can be from 1 to 8 W/m·K for high-power IGBTs. Also, their dielectric properties benefit electrical isolation in mixed thermal-electric systems. So, ceramic-filled pads balance thermal and electrical performance as a thermal pad material.

Types of Thermal Pads

Soft vs. Firm Pads

The softness or firmness of a thermal pad material decides its compliance and thermal conductivity. Soft pads, including silicone-based ones with Shore 00 hardness of 20-50, can conform to micro-irregularities. They may lower thermal resistance to less than 0.5°C/W. Firm pads with graphite layers offer stability but may have higher resistance under low-pressure mounting. Soft pads decrease stress for parts. Firm pads suit high-pressure power modules.

Electrically Insulating Pads

Electrically insulating thermal pads have high dielectric strength and heat dissipation. E.g., ceramic-filled silicone pads may attain dielectric breakdown voltages above 10 kV/mm with enough thermal conductivities. It suits IGBT modules since averting short circuits is as vital as dissipating many hundred watts of heat. Applications are LED drivers and high-frequency PCBs.

Non-Conductive Pads

Non-conductive thermal pad material avoids electrical interference and manages heat. Polyimide-based pads may have thermal resistance values of 0.2°C/W for thin applications and are standard in EMI-sensitive environments. These pads are essential in wearable electronics, where even minimal conductivity could compromise circuit integrity. Such pads provide precision yet keep device safety.

Applications of Thermal Pads in Heat Management

Consumer Electronics

In consumer electronics, thermal pads link high-power processors and heat sinks for steady heat transfer. E.g., gaming laptops may use thermal pad material with sufficient thermal conductivity values to dissipate heat from GPUs and CPUs. What is a thermal pad's advantage here? It keeps performance in ultra-thin spaces without losing thermal resistance. Smartphone manufacturers also use thermal pads in 5G chipsets to stop throttling, so devices are active under high loads.

Automotive Systems

Automotive ECUs generate heat due to high current densities. A thermal pad with high dielectric strength ensures both effective heat transfer and electrical insulation. What is a thermal pad's significance here? It inhibits overheating in tight automotive enclosures and accommodates thermal expansion from rapid temperature fluctuations. For instance, infotainment systems at 60°C ambient conditions may use silicone-based thermal pads to manage localized hotspots.

Telecommunications Equipment

In telecom equipment, server processors may dissipate over 200 W of heat per module. Thermal pads decrease junction temperatures while transferring heat to heat spreaders or vapor chambers. Graphite-based thermal pad material can be employed. What is a thermal pad's key role in data centers? It lowers thermal cycling fatigue in dense server arrays for working reliability.

LED Lighting

Junction temperatures of high-power LED modules might be above 85°C, which cuts life and performance. Low-impedance thermal pad materials direct heat to heat sinks. What is a thermal pad's benefit here? It compensates for surface irregularities to avoid localized thermal failures. Auto headlights, architectural lighting, and industrial uses gain from its LED service life.
