Optimizing Thermal Management: Strategies for Effective Heat Control

What is Thermal Management?

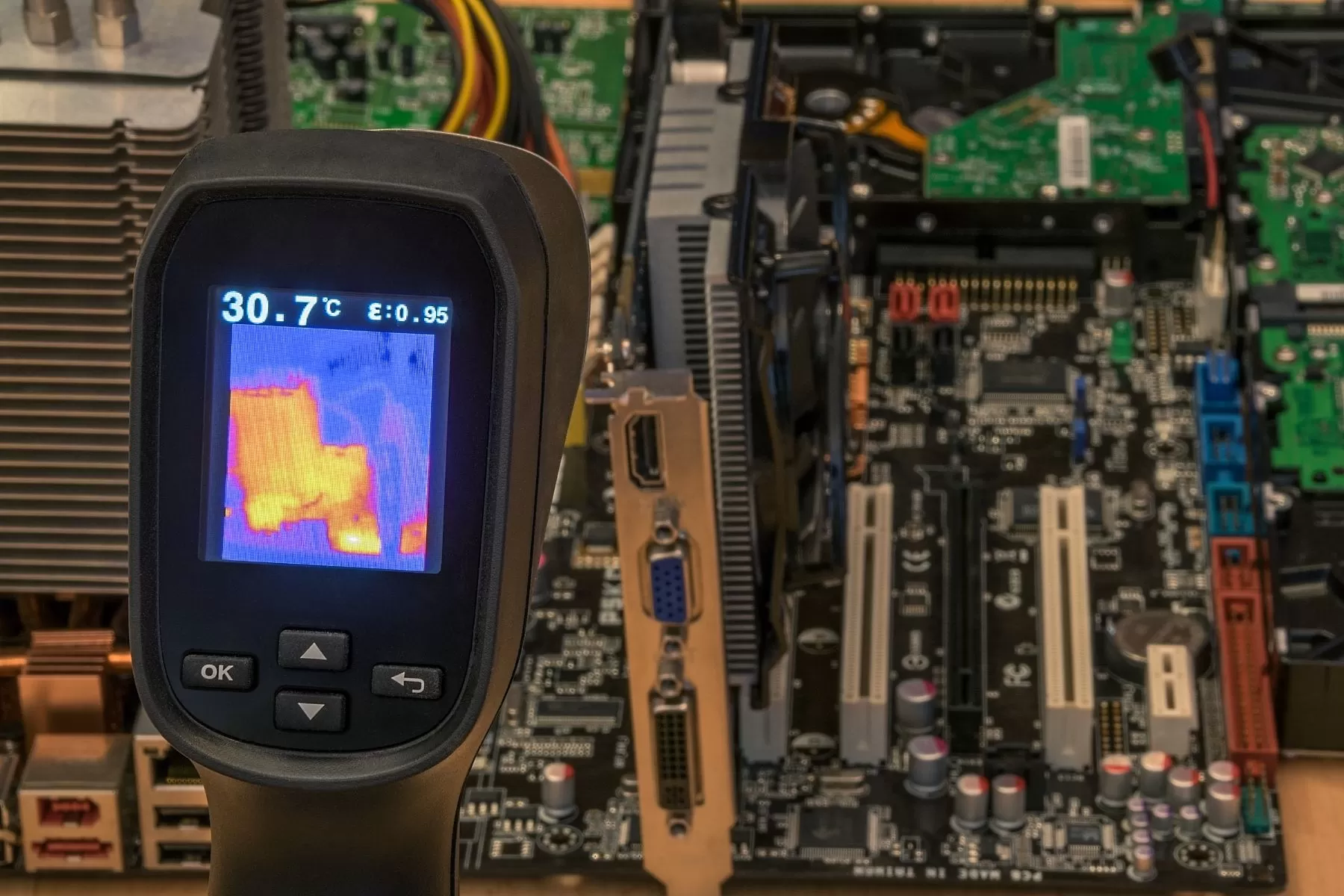

What is thermal management? The methods and materials used to manage electronic system temperatures confirm that semiconductors and processors work within thermal tolerances, say below 85°C or as low as -40°C for aeronautical systems. Silicon-based component failure rates double per 10°C increase due to overheating. EV batteries may reach 60°C during fast charging. Hence, sectors like automotive use active fans and thermoelectric coolers to regulate the heat.

Most compact consumer electronics use passive solutions like aluminum heat sinks. In data centers with racks above 10 kW, cryogenic liquid cooling can keep performance and endurance. Engineers create application-specific heat dissipation by combining active and passive ways.

Why is Thermal Management Critical?

Device Performance

Overheating forces devices into thermal throttling to avoid damage. It lowers clock speeds and impacts compute-intensive tasks. E.g., GPUs operating above 85-90°C may see performance drops due to thermal limits. In cryptocurrency mining, every degree above GPU temperatures can cut hash rates. Understanding thermal management is essential when processing speed directly impacts output in AI workloads or CFD simulations. Efficiency losses equate to higher active costs.

Longevity

High temperatures accelerate electromigration in semiconductor materials to shorten their life. At 125°C, silicon components may fail at a significantly higher rate than at 85°C. Lithium-ion batteries degrade above 40°C. What is more, an 8°C rise halves their charge cycle life. For automotive inverters, poor thermal management triggers the delamination of power modules within just a few thousand operational cycles. Consequently, it increases maintenance costs.

Safety

Unchecked heat accumulation in batteries can prompt thermal runaway to release energy exponentially. Lithium-ion cells reach critical temperatures (~183°C) during failure. It initiates cascading failures in adjacent cells and may cause numerous EV and consumer device recalls. Data centers face a 50% decrease in electronic reliability for every 10°C temperature rise above ambient. This underscores the critical importance of efficient thermal management systems for ensuring safety..

Challenges in Modern Thermal Management

Increasing Power Density

Higher power density demands materials with ultra-high thermal conductivity. For instance, small peripheral GaN devices may reach 30 W/mm RF output power density. Yet, they need heat sink designs with anisotropic properties. Traditional heat spreaders (aluminum or copper) might fail under such grave conditions. One potential solution is synthetic diamond films; however, their high cost and integration complexity limit widespread adoption. CFD helps optimize such designs before physical prototyping.

Compact Design Constraints

Compact smartphones struggle with thermal bottlenecks due to limited airflow. Vapor chambers have replaced heat pipes in premium models. The chambers may handle heat loads of up to 50 W with thicknesses under 1 mm. Also, innovations in PCMs help store and release heat cyclically. Still, these are sensitive to lengthy thermal cycling and cause material fatigue. Liquid metal TIMs offer higher thermal conductivity but risk electrical shorts if improperly applied.

Efficiency and Environmental Concerns

Thermal management systems must decrease energy waste. Data centers use liquid cooling. It lowers power usage effectiveness to 1.23 from the industry average of 1.6. Water-based coolants are efficient; nevertheless, they raise concerns about chemical disposal and lifecycle impact. AI-optimized thermal solutions forecast heat dissipation channels to cut fan use and energy expenses. So, rethinking "what is thermal management" in an energy-conscious society, future systems must balance thermal efficiency and environmental sustainability.

Thermal Management Strategies

Passive Cooling Methods

• Heat Sinks: Heat sinks increase the surface area for thermal exchange for passive cooling. For instance, extruded aluminum heat sinks may attain thermal conductivity up to 237 W/m·K. Finned designs boost airflow interaction for dissipation. Copper heat sinks (thermal conductivities of ~386 W/m·K) suit high-power applications like LED lighting.

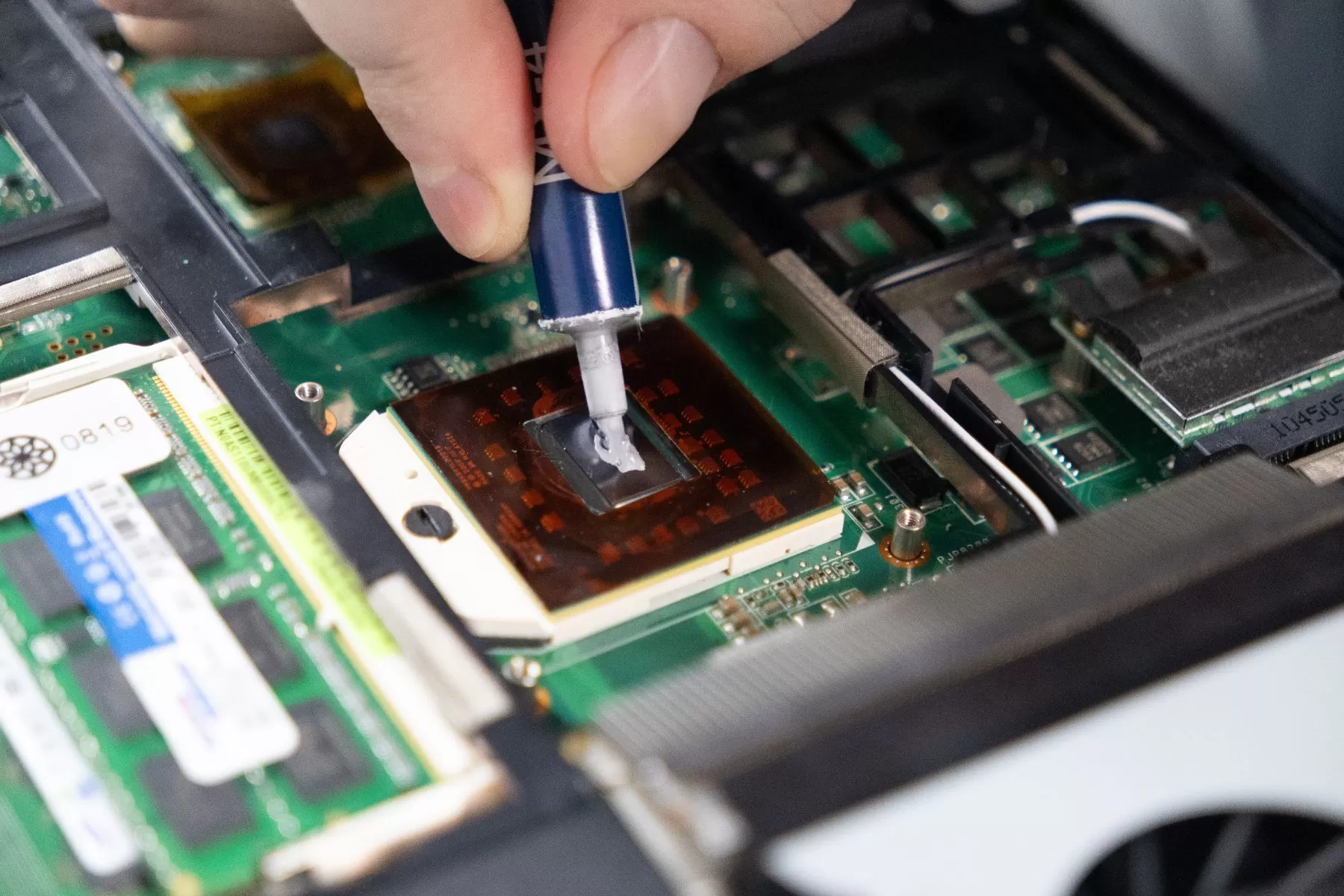

• Thermal Interface Materials (TIMs): TIMs fill tiny air gaps between heat-generating components and heat sinks for better thermal transfer. For example, high-performance thermal greases may realize thermal conductivities above 10 W/m·K. Phase-change TIMs benefit CPUs since they soften at ~60°C for near-perfect contact under load.

Active Cooling Solutions

• Fans and Blowers: Active air movement systems lower thermal resistance. For example, a high-performance axial fan might keep airflow rates above 100 CFM for server racks. Blowers with focused airflow paths are good for localized cooling in compact devices. Both count on placement and RPM tuning to balance noise and thermal efficiency.

• Liquid Cooling: Closed-loop liquid systems dissipate heat from high-TDP components. E.g., a gaming PC water block may remove over 300W of heat with coolant flow rates of ~1 GPM. Radiators with dual or triple fans increase cooling capacity. Liquid cooling is key to data centers because temperature precision inhibits equipment failures.

Advanced Thermal Management Technologies

• Phase-Change Materials (PCM): PCM absorbs latent heat during phase transitions for passive cooling. Paraffin wax (melting point 46-68°C) can store up to 250 kJ/kg for battery thermal management. In grave environments, satellite thermal control uses PCMs.

• Thermoelectric Coolers: Peltier modules regulate temperature sub-degrees with precision. They use the Peltier effect. It transfers heat between junctions electrically. For example, for stability at -40°C, laser diode TEC devices may tolerate 50W heat loads.

• Advanced Materials: Graphene beats standard materials with thermal conductivities near 4000 W/m·K in single layers. Its application in microchips and LEDs can cut junction temperatures. Diamond composites may also work in aeronautical thermal management.

Applications of Thermal Management

Consumer Electronics

• Cooling mechanisms for smartphones and tablets.

• Heat sinks and fans for laptops.

• Temperature management in gaming consoles.

• Thermal regulation in wearable devices.

• Heightened battery safety and life.

Automotive Systems

• Thermal management in EV batteries.

• Cooling systems for IC engines.

• Heat dissipation in infotainment and navigation systems.

• Climate control and cabin temperature regulation.

• Governing heat in hybrid vehicle components.

Data Centers

• Airflow optimization and cooling systems.

• Liquid cooling technologies for servers.

• Heat recovery for energy efficiency.

• Thermal monitoring and management software.

• Use of contemporary thermal interface materials.

Aerospace and Defense

• Heat shielding for spacecraft re-entry.

• Cooling systems for high-performance avionics.

• Thermal control in satellites and space stations.

• Heat dissipation in radar and communication systems.

• Thermal management in military-grade power electronics.
