Understanding Heat Sinks: Types, Technology, and How It Works

Heat sinks play a critical role in electronics, serving as specialized cooling solutions designed to manage and dissipate heat generated by components like CPUs and GPUs. They act as guardians against overheating, efficiently drawing heat away from these elements and dispersing it into the environment. Utilizing various types—passive or actively cooled—and materials like copper or aluminum, heat sinks ensure optimal device performance and longevity by preventing thermal damage and maintaining safe operating temperatures.

Here’s a comprehensive guide on heat sinks so you can have a better understanding of what they are, the different types of heat sinks including passive heat sinks, the purpose they serve in electronics, and more on innovative heat sink technology as well as the diverse materials that make them crucial for efficient heat management.

What is a Heat Sink?

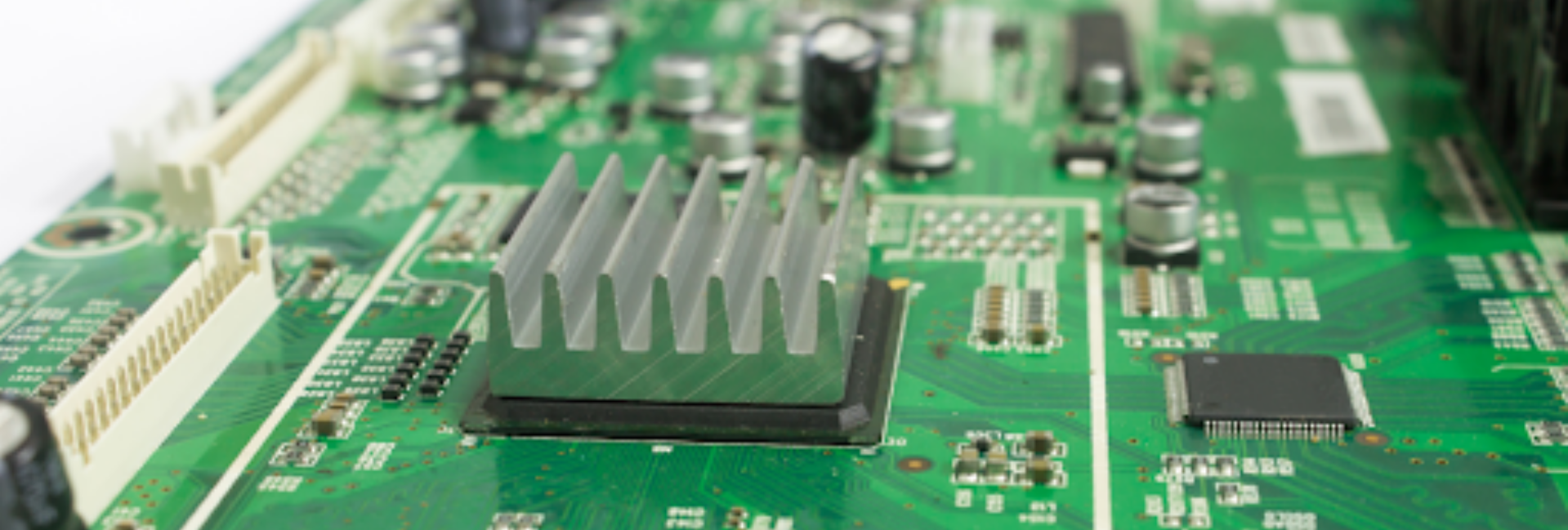

A heat sink is an integral component within electronic devices designed to manage and dissipate excess heat generated during operation. It acts as a passive cooling system, absorbing heat from a heat-producing component, typically a processor or chip, and effectively dispersing it into the surrounding environment.

The fundamental principle behind heat sinks lies in heat transfer mechanisms, primarily conduction and convection. Conduction allows the heat generated by the device to move into the heat sink, which is often made of thermally conductive materials like aluminum or copper. Once absorbed, convection comes into play, enabling the heat sink to release the absorbed heat into the air, aided by the increased surface area of the heat sink's fins or structures.



What Does A Heat Sink Do?

A heat sink effectively manages the excess heat generated during its operation. Its primary function revolves around heat dissipation, pulling thermal energy away from heat-generating components like processors, GPUs, or other integrated circuits within electronic systems. By absorbing this heat, the heat sink prevents the device from reaching critical temperatures that could potentially impair its functionality or cause permanent damage. Essentially, a heat sink acts as a passive cooling mechanism, safeguarding the device's integrity by regulating its temperature.

The core purpose of a heat sink is to enhance the device's thermal performance by increasing the surface area available for heat exchange. It achieves this through its design, typically featuring fins or protrusions that amplify the surface area in contact with the surrounding air. This enlarged surface area enables more efficient heat dissipation through convection, where the heat absorbed by the heat sink is transferred into the surrounding environment.

By facilitating this heat transfer process, heat sinks play a pivotal role in maintaining the optimal operating temperature of electronic components, ensuring their longevity and uninterrupted functionality.



Types of Heat Sinks

Heat sinks, pivotal in electronics, fall into two primary categories: active and passive. Active heat sinks integrate components like fans or liquid cooling systems to actively enhance heat dissipation, while passive heat sinks rely on natural convection or conduction without additional mechanisms for cooling.

Active Heat Sinks

Active heat sinks incorporate powered components such as fans or pumps to augment their cooling capacity. These heat sinks are particularly advantageous in scenarios requiring enhanced thermal management, especially with high-powered electronics like high-end CPUs or GPUs in gaming rigs, servers, or high-performance computing.

The active components facilitate more efficient heat dissipation by continually circulating air or coolant, ensuring more consistent cooling. However, their reliance on moving parts can lead to potential drawbacks like increased noise levels, higher power consumption, and added complexity in installation as compared to its passive counterparts.

Passive Heat Sinks

Passive heat sinks, devoid of powered components like fans or pumps, rely solely on natural convection or conductive materials to dissipate heat. They find extensive use in scenarios where noise reduction is critical or in applications with lower heat generation, such as in small electronic devices like smartphones, IoT devices, or LED lighting systems.

These heat sinks offer a quieter operation and increased reliability due to the absence of moving parts, making them suitable for environments sensitive to noise or where maintenance is challenging. However, their efficiency might be limited in scenarios with high heat loads or insufficient airflow, which can impact their overall cooling performance.

Hybrid Heat Sinks

Hybrid heat sinks integrate both active and passive elements, leveraging the strengths of each type. These designs often incorporate fans or pumps alongside extended surface areas or specialized heat sink materials to optimize heat dissipation. They're particularly advantageous in scenarios where there's a need for enhanced cooling efficiency while still aiming for reduced noise levels. Applications such as high-performance computing, servers, or high-end gaming systems benefit from the combined effectiveness of active and passive elements, ensuring better temperature management and reliability.

However, the complexity of hybrid designs may increase manufacturing costs and maintenance requirements compared to purely passive or active heat sinks. Additionally, the reliance on multiple components introduces the risk of potential failure in the active components, impacting overall system reliability.

Heat Sink Technology and Materials

Heat sinks are commonly crafted from materials like aluminum and copper due to their excellent thermal conductivity. Copper boasts superior thermal properties with a thermal conductivity of around 400 W/m-K, twice that of aluminum. However, copper is heavier, pricier, and harder to shape compared to aluminum. On the other hand, aluminum, with a thermal conductivity roughly half that of copper, offers a lightweight and cost-effective alternative, often suitable for various heat sink applications, especially where weight is a concern.

Aluminum

• Lightweight and cost-effective

• Decent thermal conductivity

• Ideal for applications where weight is a primary concern

Copper

• Superior thermal conductivity (around double that of aluminum)

• Heavier, more expensive, and harder to shape compared to aluminum

• Suitable for scenarios requiring exceptional heat transfer capabilities

Recent advancements in heat sink technology focus on improving materials and designs to enhance heat dissipation. Innovations include composite materials, vapor chambers, and improved fin structures. These advancements aim to achieve better thermal conductivity, increased surface area for improved heat dissipation, and more efficient cooling solutions overall.



What is the Purpose of a Heat Sink?

The purpose of a heat sink spans across a wide array of electronic devices. In computers, heat sinks are integral, cooling central processing units (CPUs) and graphics processing units (GPUs) to maintain operational temperatures within safe limits. They're also prevalent in power supplies, mitigating heat generated during energy conversion processes. Moreover, their application extends to smaller devices like smartphones and tablets, where they manage the heat dissipation from processors and battery systems. Essentially, heat sinks are omnipresent, ensuring electronics operate efficiently by averting potential damage from excessive heat buildup.



Designing Efficient Heat Sinks

The efficiency of a heat sink heavily relies on its design features such as shape, size, and material composition. These elements significantly impact the heat sink's ability to dissipate heat efficiently within electronic devices. The shape and size determine the surface area available for heat dissipation, while the material's thermal conductivity influences how effectively it transfers heat away from the heat source.

Customized design plays a pivotal role in optimizing heat sink performance for specific applications. Tailoring the heat sink's shape, size, or material to match the unique requirements of different electronic systems ensures enhanced cooling efficiency. By adjusting these design elements, heat sinks can effectively manage and regulate the temperature of various devices, improving their overall performance and longevity.

In the realm of emerging technologies like 5G devices and advanced computing systems, heat sinks hold a critical role. With the constant drive for higher processing speeds and denser component layouts, heat dissipation becomes increasingly challenging. Heat sinks play a vital role in maintaining the thermal stability of these advanced systems, ensuring optimal functioning by efficiently managing the increased thermal loads.

As technology advances, innovations in heat sink design and materials continue to redefine thermal management solutions, ensuring optimal performance and longevity of electronic systems. Heat sinks stand as indispensable components within electronics, crucial for efficiently managing heat and safeguarding device performance, and at T-Global, we specialize in providing superior, customized solutions, tailored to your specific needs. With our extensive experience in the industry and our commitment to quality, we can guarantee high-performance heat sinks that enhance the longevity and efficiency of your devices. Whether you're dealing with advanced computing systems or small IoT devices, our heat sinks are engineered to handle the most demanding thermal loads.

To find out more about how our heat sink solutions can benefit your business, we encourage you to reach out to our team of experts at T-Global. We're ready and eager to help you find the perfect thermal solution for your needs.
